LD-1020 Wire Stapled Exercise Book Making Machine
Production line of one roll paper 2/2 flexographic one feeder inserteer saddle stitching
Product Description :

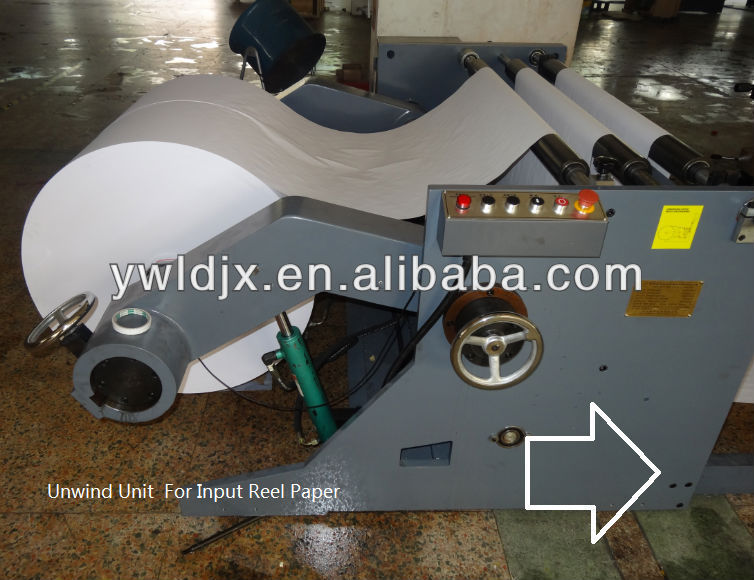

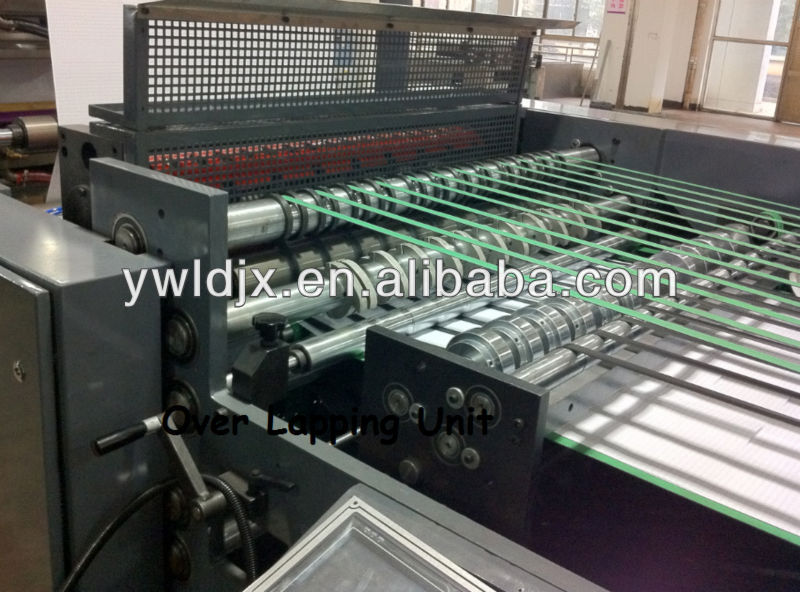

This machine adopts high techniques such as microcomputer control , electro-optical tracking, gas-liquid interaction, human-machine interface touch screen operation and ink flexo printing as ink flexo printing is environmentally-friendly and scientific. This production line is an ideal choice of mass production of staple-binding notebooks, with a perfect combination of 12 processes from: 1.one reel paper unwind, 2.high speed flexographic printing with - 2/2 color, 3.Cross cutting, 4.Over lapping 5.collecting, 6.One unit auto cover inserting, 7.Stitching Unit, 8.Folding, 9.Back pressing, 10.Strip cutting waste, 11.Trimming and slitting, 12.Counting delivery to the finishing good products of notebooks.
Product Features :
1. Take it easy, accurate color, long life.
2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.
3. Use special diagonal-tooth gear, accurate printing size.
4. Printing rolls treated by dynamic balance, static balanced.
5. Print produce are clear and good arrangement quality.
6. Configuration: Japan Brand NSK Bearing, Germany Hohner Stitching head, Germany IKS Shanghai Knife, Switzerland Habasit belt etc.
Technical Parameters :
1) Product model LD-1020
2) Web width 580-1020 mm
3) Max. printing speed 240 m/min
4) Repeat range 300-670 mm
5) Cutting length 300-670 mm
6) Counting & collecting 5-50sheets
7) Max. reel paper diameter 1200mm
8) Sheet weight 45-120g
9) Notebook width 130-225mm
10) Cover weight 80-300g
11) Appendix weight 40-150g
12) Max. output frequency 45 times
13) Sheet stitching thickness 8 mm
14) Total power 30 kw
15) Overall dimensions(LxWxH) 20400x32500x2500 mm
16) Machine weight 17 T
|
|
